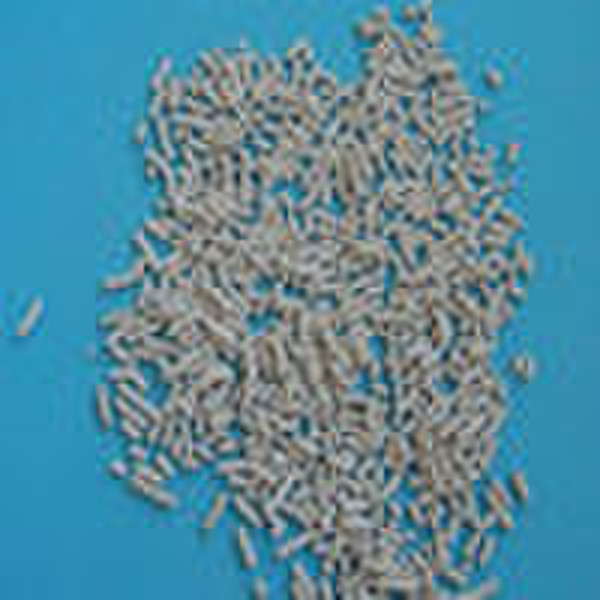

13X APG Molecular Sieve for Air Separation

13X APG Molecular Sieve for Air Separation Zeolite Molecular sieve 13X-APG is the sodium form of the type X crystal and has a much large pore opening than the type A crystals.It will adsorb molecules with a kinetic diameter of less than 9 Angstrom(0.9nm) and exclude those larger. It also has the highest theoretical capacity of the common adsorbents and very good mass transfer rates.It can remove impurities too large to fit into a type A crystal and is commonly used to separate nitrogen from oxygen Typical Chemical Formula Na2O . Al2O3 . (2.8±0.2)SiO2 . (6-7)H2O SiO2 : Al2O3 ≈2.6-3.0 Technical Parameter Item UnitTechnical dataShapePelletSphereDiametermm1.5-1.73.0-.3.31.7-2.53.0-5.0Size ratio up to grade%≥98≥98≥96≥96Bulk densityg/ml≥0.68≥0.68≥0.68≥0.68Wear ratio%≤0.10≤0.20≤0.10≤0.10Crushing strengthN≥30/cm≥45/cm≥25/piece≥65/pieceStatic water adsorption%≥23.5≥23.5≥23.5≥23.5Static CO2 adsorption%≥18≥18≥18≥18Water content,as shipped%≤1.5≤1.5≤1.5≤1.5 Application 1) Removal of CO2 and moisture from air (air per-purification) and other gases 2) Separation of enriched oxygen from air 3) Removal of mercaptans and hydrogen sulphide from natural gas 4) Removal of mercaptans and hydrogen sulphide from hydrocabon liquid streams(LPG,butance,propane etc.) 5) Catalyst protection,removal of oxygenates from hydrocarbons(olefin streams) 6) Removal of n-chained compositions from aromatics 7) Production of bulk oxygen in PSA units 8) Production of medical oxygen in small scale oxygen concentrators Regeneration Pingxiang Petrochemical molecular sieve Type 13X can be regenerated by either heating in the case of thermal swing processes or by lowering the pressure in the case of pressure swing processes. To remove moisture from a 13X molecular sieve, a temperature of 250oC-300oCis required.Aproperly regenerated molecular sieve can give moisture dew points below -100oC or mercaptan or CO2 levels below 2ppmv. The outlet concentrations on a pressure swing process will depend on the gas present,and on the conditions of the process. Size 13X-Zeolites are available in beads of 1-2mm(10×18mesh),2-3mm(8×12mesh),2.5-5mm(4×8mesh) and as power and in pellet 1.6,3.2 Attention To avoid damp and pre-adsorption of organic before running,or must to be reactivated.
